Low Intensity Type B 48V/24V DC Aviation Light Single and Dual Dome, Flashing/Steady

Data Sheet for Aviation Lamp 48V DC (Model No. AV-04):

Single Dome

Voltage : 48V DC (Range 40-60V DC))
Type : LED Type
Color of LED light : Red
Light Intensity : > 32cd as per ICAO specs
LED’s : Super Red high intensity LED’s suitable for outdoor application.
No of LEDs : 108
Horizontal Beam Spread : 360 Degree, as per ICAO specs, uniform spread
Vertical Beam Spread : > 10 Degree, as per ICAO specs
Switching Sensor : Built-in photo sensor at the base of the Aviation Light to switch in/out the Aviation Lamp at twilight and dawn.
No of parallel paths : 12
Mountings : > 3/4” bottom hub for threaded GI Pipe.
Enclosure : High-grade aluminum body with clear glass dome sealed using Silicon based sealant.
Finish : Orange color Epoxy Powder coated painting on base
Surge protection : Inbuilt with MOV
Power Consumption : Appox 4 Watts
Operating Temperature : 0° - 50°C

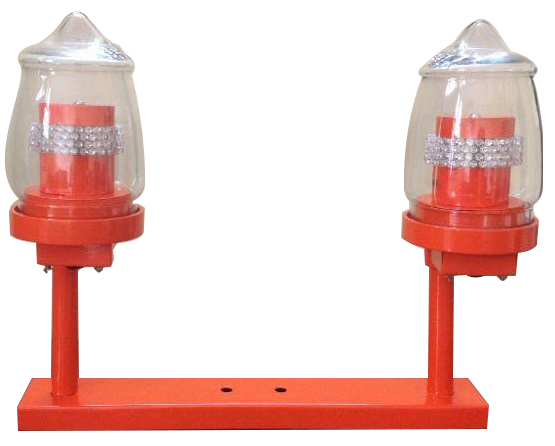

Dual Dome

Voltage : 48V DC (Range 40-60V DC))
Type : LED Type
Color of LED light : Red
Number of domes : Two
Standby : No, both domes constant ON
Light Intensity : Above 32cd
Horizontal Beam Spread : 360 Degree, as per ICAO standard
Vertical Beam Spread : > 10 Degree as per ICAO standard
Switching Sensor : > Built-in photo sensor at the base of Master Aviation Light to switch ON/OFF the Aviation Lamp at twilight and dawn.
No of LEDs : 108, each dome
No of parallel paths : 12 each dome
Mountings : Drill/Weld free Mounting arrangement provided
Enclosure : High-grade aluminum body with clear glass dome sealed using Silicon based sealant.
Finish : Orange color Epoxy Powder coated on Aluminum base
Cable connection terminal : User provided
LED’s : Super Red high intensity LED’s suitable for outdoor application.
Power Consumption : 6 watts appox (incl both domes)
Operating Temperature : >0° - 50°C

Note: Due to continuous improvements Spaceage reserves the right to modify the specs
