| Product Code |
: |
AV-04-ADDD-A
|
| Type |
: |
LED Type |
| LED’s |
: |
Red high intensity LED’s suitable for outdoor application. |
| No of Lights |
: |
Two per unit |
| Operation Mode |
: |
Both ON simultaneously (Standby mode can be customized but required additional cable ) |
| Failure criteria |
: |
Power consumption less than appox 65% of overall rated values or as defined by user |
| No of LEDs |
: |
108 per light |
| No of parallel circuits |
: |
12 per light |
| Wattage |
: |
Less than 6W |
| Enclosure |
: |

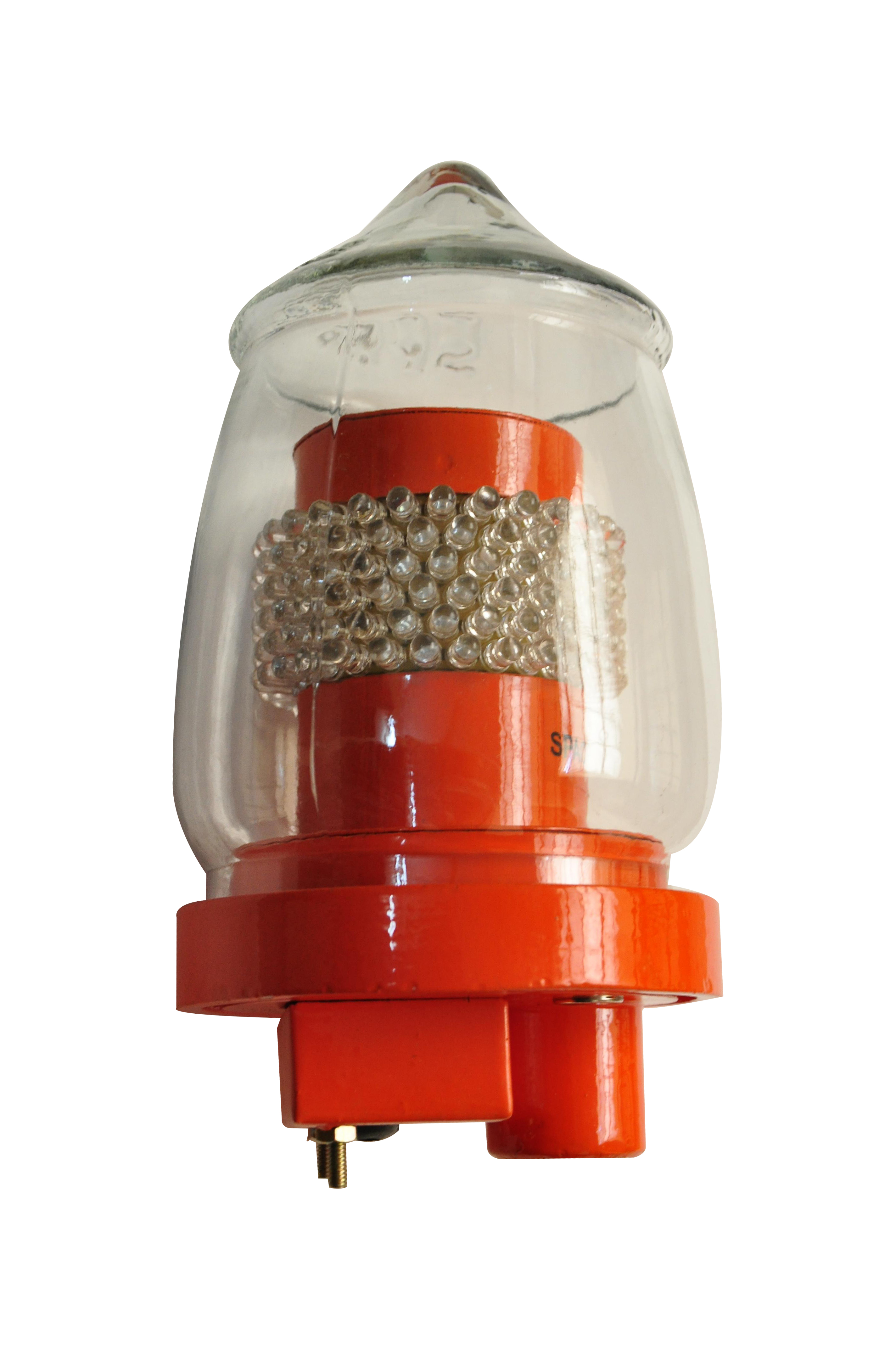

High-grade cast aluminum base with water clear glass dome.
Dome fixed to base using silicon permanent sealants to protect against moisture and dust
|
| Finish |
: |
Orange color Epoxy Powder coated painting on base and pipe.
|
| Candela |
: |
Above 32 cd |
| Bird spike |
: |
AInbuilt |
| Horizontal light spread |
: |
360 deg |
| Vertical light spread |
: |
12 deg min |
| Compliance |
: |
ICAO Annex 14 |
| Control panel |
|
|
| Voltage |
: |
170V - 250 V AC /40-54 DC, preference to 230V AC |
| Visual Indicators on panel |
: |
Mains Power ON,Light ON, Light FAIL |
| Alarm Extentions |
: |
Potential free NO NC C contacts for
• Power fail
• Light fail (either one)
Alarm extentions are available on the control panel itself |
| Day/Night switching |
: |
Auto photocell(LDR based)/Manual |
| Switching Sensor |
: |
External LDR(photocell), to switch ON/OFF Aviation Lamp at twilight and dawn. |
| Mounting arrangement |
: |
Control Panel - Wall mounted, in side the shelter (outdoor option available at extra cost)
Switching Sensor - External, can be mounted outside shelter or on Tower using appropriate cable (not provided)
|
| Light Finish |
: |
Bright Orange powder coating |
| Panel Finish |
: |
Powder coated Seamans Grey |
| Protection |
: |
Dual pole MCB 6A (or as per specs) - One provided on Input |
| Working temp |
: |
-10 deg to +55 deg C Suitable for harsh environment |
| Humidity |
: |
Upto 95% non condensing |
| LIGHT MOUNTING |
|
|
| Mounting |
: |
With special J plate and J clamps, does not require welding or drilling for mounting of lights |
